出口定制-电源分配板 电源分线器(可监控型 输出状态,带报警信号)
输入电压:12-24V AC或DC都可以工作
输出:10路监控输出(继电器报警信号输出)
任何1路故障都会触发报价信号
- 总输出功率: 0-150W
- 总输出电流: 8.5A
- 输出电压: DC12V,DC24V,多种电压输出,其他电压输出
- 输出路数: 10路
- 附加功能:
输入电压:12-24V AC或DC都可以工作
输出:10路监控输出(继电器报警信号输出)
任何1路故障都会触发报价信号
Features
• User friendly solution to low voltage power distribution
• State-of-the-art SMD technology
• 10 Individual fused and monitored outputs
• Operating voltage 12-24V AC or DC
特征
•用户友好的低压配电解决方案
•先进的SMD技术
•10个单独融合和监控的输出
•工作电压12-24V AC或DC12-24
Specifications

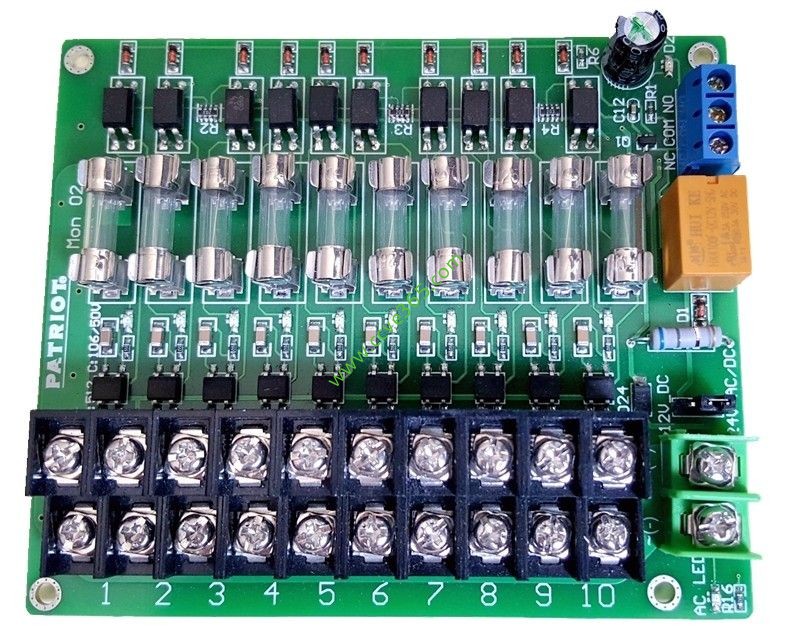

Model: Mon 02
Input Voltage: 12-24V AC or DC
Output: 10 x fused and monitored outputs
Total Current: 10A Max
Relay Rating: 3A@0-250V AC or 30V DC
Size: 110 x 93mm
产品规格
型号:Mon 02
输入电压:12-24V AC或DC
输出:10个融合和监控输出(继电器报警信号输出)
总电流:10A最大
继电器额定值:3A @ 0-250V AC或 30V DC
尺寸:110 x 93mm
Operation Voltage Jumper Setting
Mon 02 May be used for use 12-24V AC or DC devices and ships from the factory set for 24V AC for operation.
If 12VDC operation is desired, simply change the Jumper to 12V DC.
工作电压跳线设置
Mon 02可用于使用12-24V交流或直流设备,出厂默认设置的24V AC运行。
如果需要12VDC操作,只需将跳线更改为12V DC。
Common Fault Relay
Mon 02 includes a common fault output relay (rated at 1A) to drive external devices, such as alarm panels, sounders and DVR alarm inputs, ensuring that failure of any individual circuit does not go unnoticed.
During normal operation all green circuit status LEDs 9 will be lit. In the event of a fuse failure, the corresponding circuit status LED will extinguish, the Common Fault Relay 7 will change state and the Common LED 8 will light.
When the fault is rectified and the fuse replaced, LEDs & Relay will return to normal.
故障输出继电器
Mon 02包括一个常见故障输出继电器(额定值为3A),以驱动外部设备,如报警面板,发声器和DVR报警输入,确保任何单独电路的故障不会被忽视。
在正常操作期间,所有绿色电路状态LED 9将亮起。 在保险丝故障的情况下,相应的电路状态指示灯将熄灭,公共故障继电器7将改变状态,通用LED 8将点亮。
当故障整流并更换保险丝时,LED和继电器将恢复正常。
